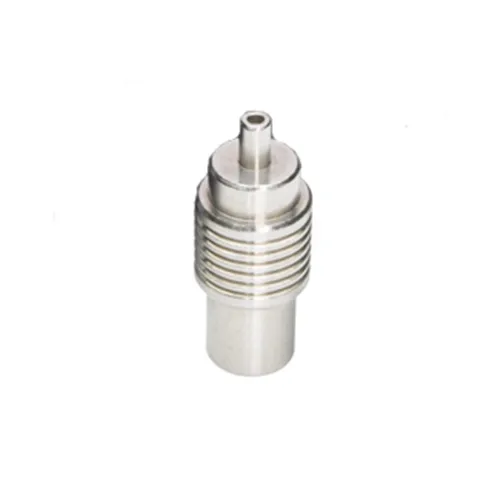

This adapter is specifically designed for use with the smaller 1.25mm ferrule size that is typical of LC (Lucent Connector) fiber optic connectors. The adapter allows for the proper alignment and polishing of these connectors during the termination process, which is crucial for ensuring low insertion loss and high-quality signal transmission in fiber optic networks
About:
This adapter is crucial for ensuring the connectors are properly aligned and polished during the termination process, which is essential for achieving low insertion loss and high-quality signal transmission in fiber optic networks.
Common Applications:
• Telecom Installations: For splicing and repairing fiber in the field, where quick, reliable connections are needed.
• Data Centers: I Where space is at a premium and LC connectors are used for high-density patch panels.
• Networking: In corporate or campus networks where LC connectors are used for their performance and compact size.
• Electronics Manufacturing: In the production of devices that use optical connections, such as transceivers and switches.
• Fiber to the Home : In installations where space-saving LC connectors are preferred
Features:
• Size Compatibility: It accommodates the smaller 1.25mm ferrule size found on LC connectors.
• Polishing Support: It is used in conjunction with polishing fixtures to ensure proper polishing of the fiber optic connectors.
• Quick Bonding: Supports the fast curing process for adhesives or coatings on fiber connectors.
• Precision: Allows for precise alignment during the polishing process, which is critical for maintaining signal integrity.
• Versatility: While it is part of a kit, it is an essential tool for a variety of applications, from telecommunications to arts and crafts
Standards:
ANSI/TIA-568-C.3: This standard provides guidelines for optical fiber cabling components used within a telecommunications structure.
IEC 61754-20: This is the specific standard for the LC type fiber optic connectors that would use a 1.25mm adapter.
TIA-604 (FOCIS): Fiber Optic Connector Intermateability Standards define the intermateability of fiber optic connectors.
Specification:
Type: Adapter for Visual Fault Locator
Color: White
Size: 1.25 mm
Construction:
The construction of a 1.25mm Adapter for fiber optic applications would involve precision-engineered components suitable for delicate fiber optic terminations.Often made of metal or hard plastic to withstand repeated use and maintain precise connections.
